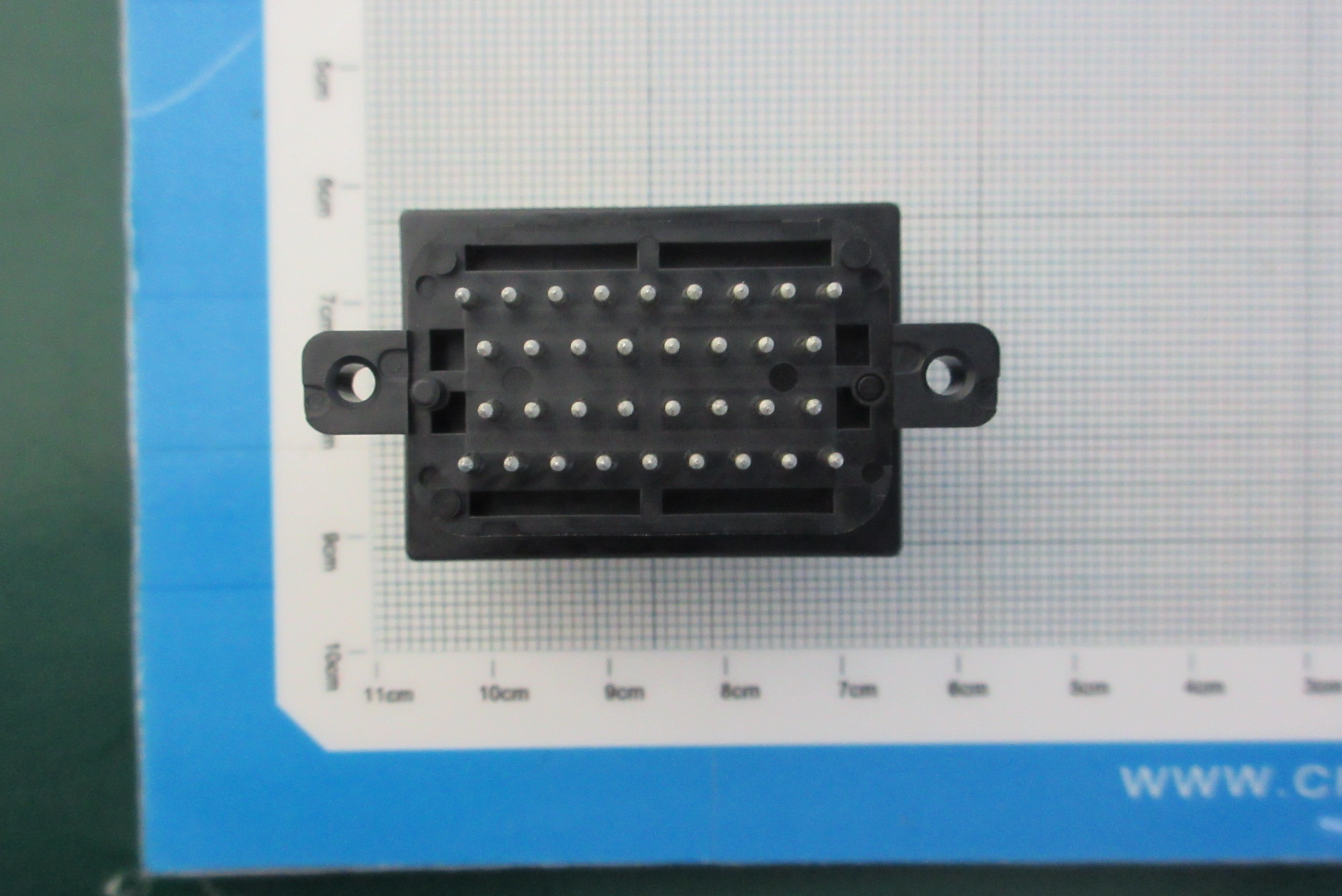

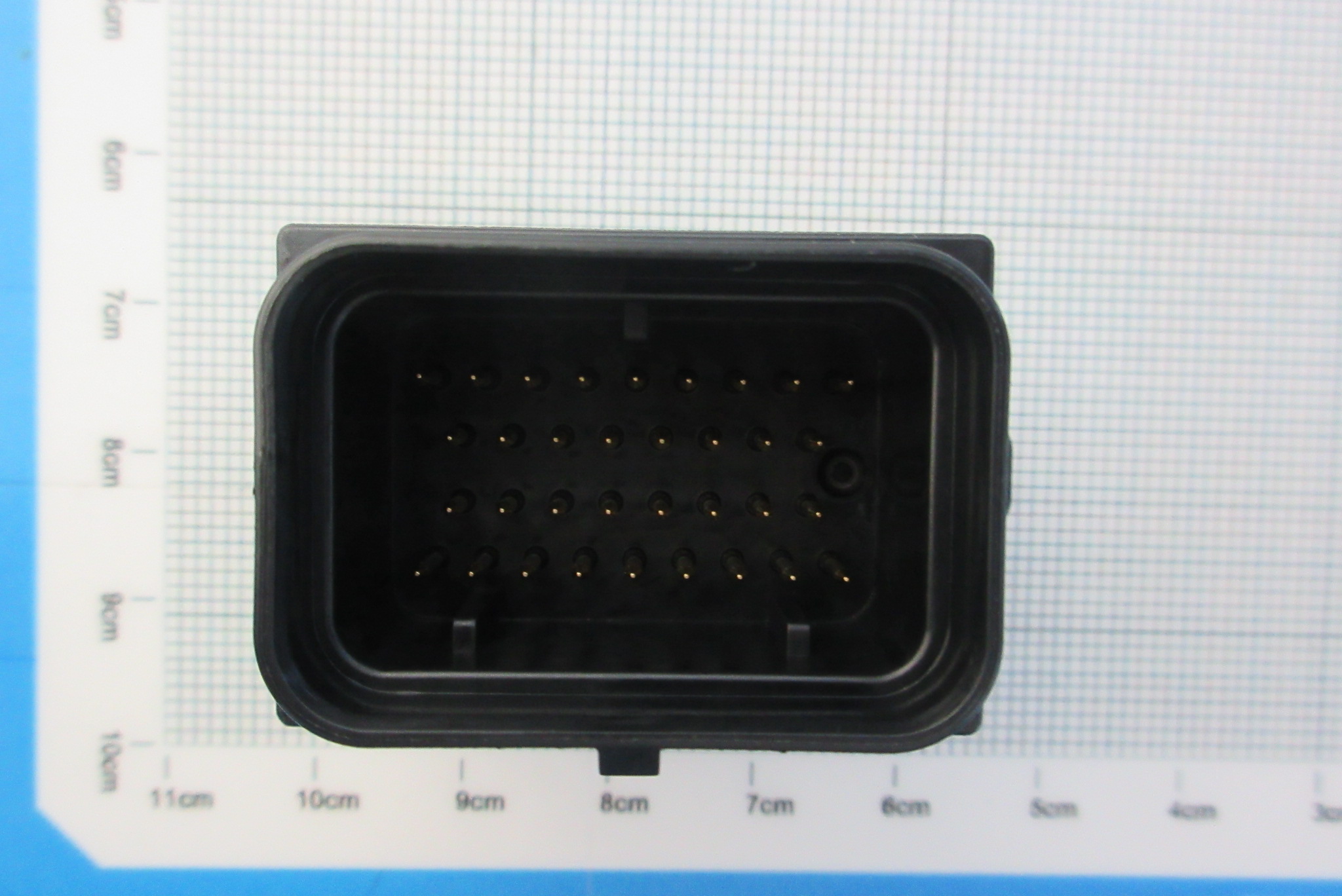

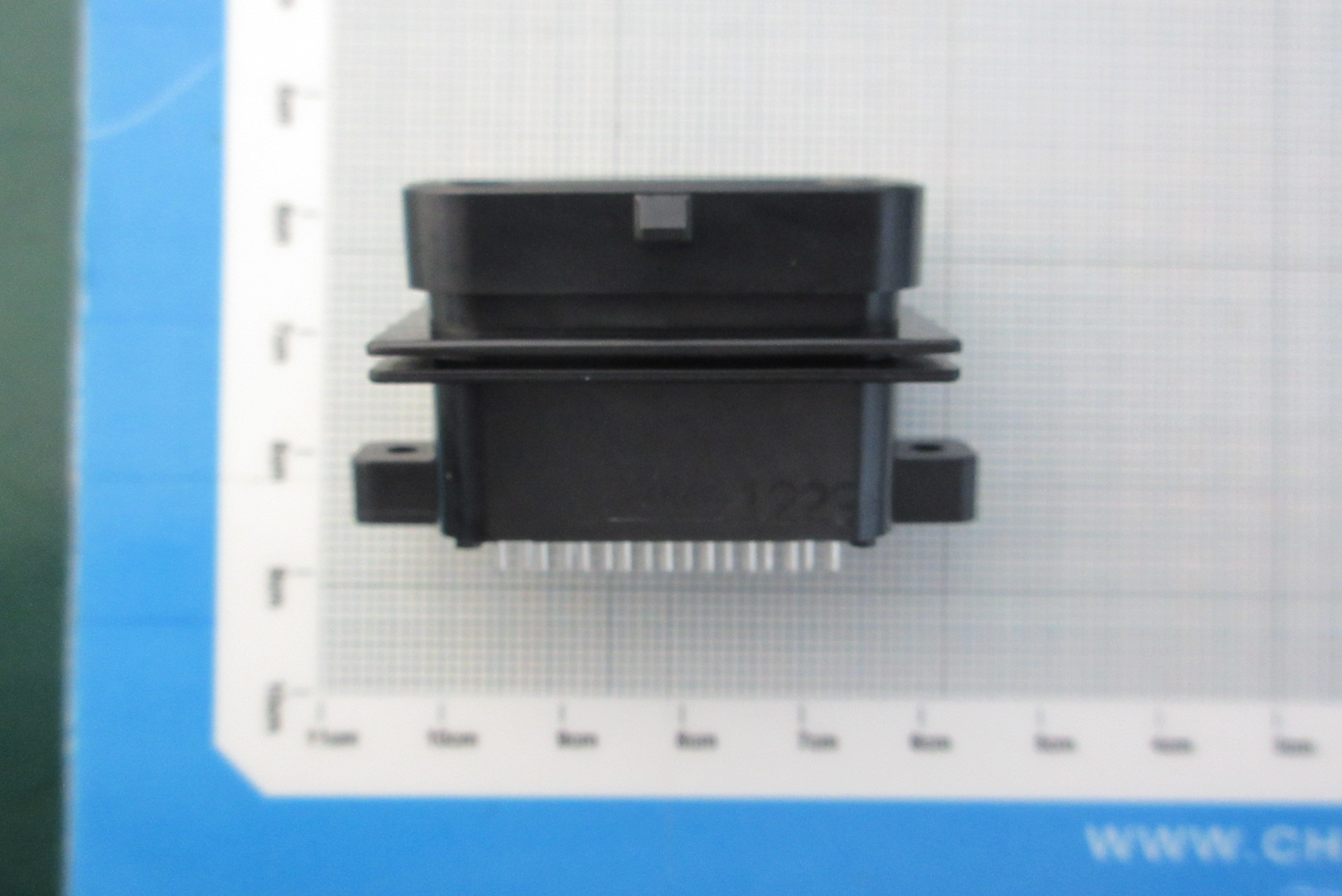

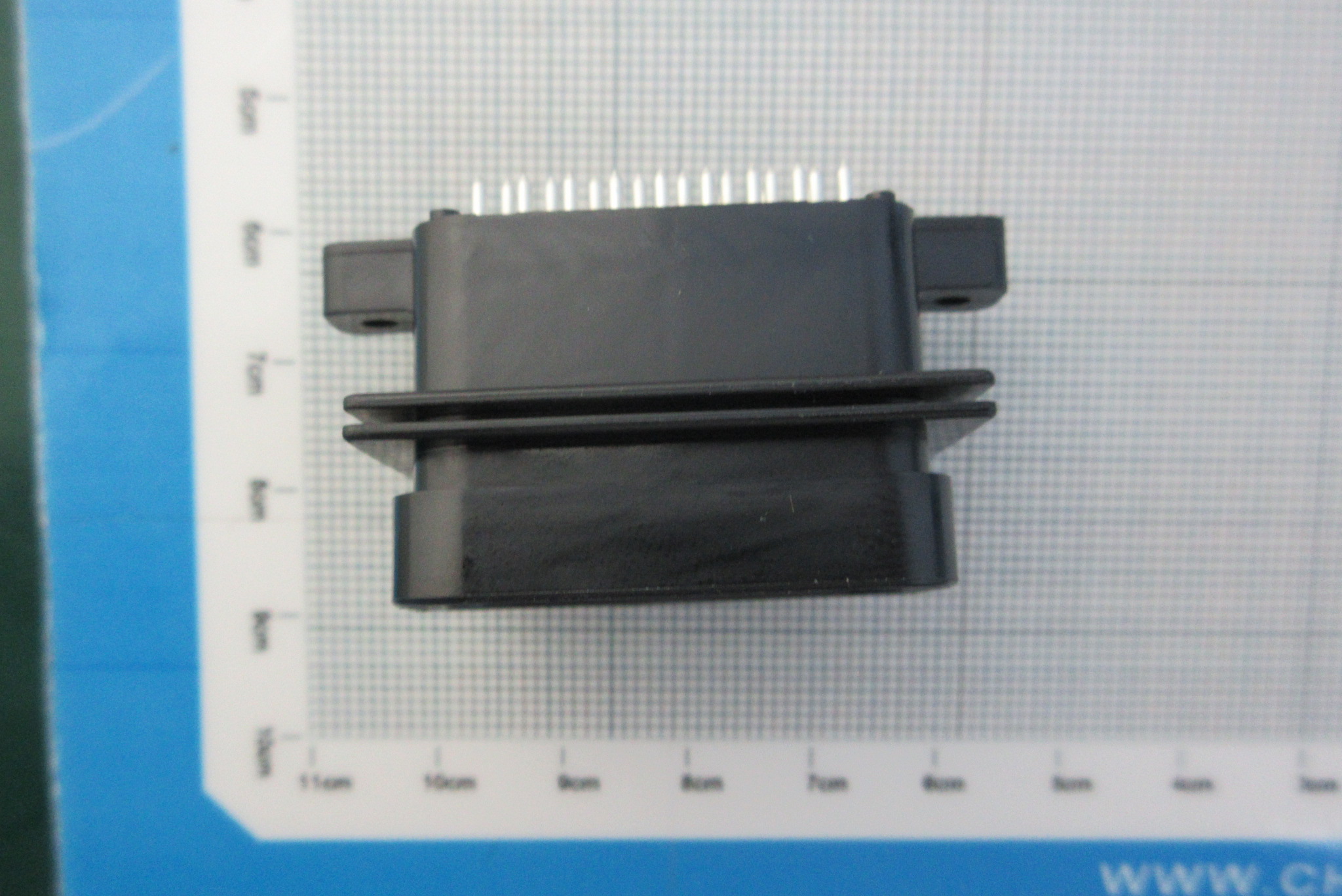

Part No.：2-6447232-3
Category：Rectangular Connectors - Housings
Manufacturer：TE Connectivity
Date Code：
Package Type：-
Quantity：50000
Click：15
Update Time：2022-07-18 10:37:07
Description:
| Manufacturer | TE Connectivity | Manufacturer's Part # | 2-6447232-3 |
|---|---|---|---|
| Categories | Connectors, Interconnects | Sub-Categories | Rectangular Connectors - Headers, Male Pins |
| Series | Superseal | Part Status | Active |
| Connector Type | Receptacle | Contact Type | Male Pin |
| Pitch - Mating | 0.118" (3.00mm) | Number of Positions | 34 |
| Number of Rows | 4 | Row Spacing - Mating | - |
| Number of Positions Loaded | All | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Mounting Type | Through Hole |
| Termination | Solder | Fastening Type | Locking Ramp |
| Contact Length - Mating | - | Contact Length - Post | 0.157" (4.00mm) |
| Overall Contact Length | - | Insulation Height | 1.079" (27.40mm) |
| Contact Shape | Circular | Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Material | Brass | Insulation Material | Polyester |
| Features | Mounting Flange, Sealed | Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - | Material Flammability Rating | - |
| Insulation Color | - | Current Rating | Varies by Wire Gauge |
| Voltage Rating | 250V |
