Description:

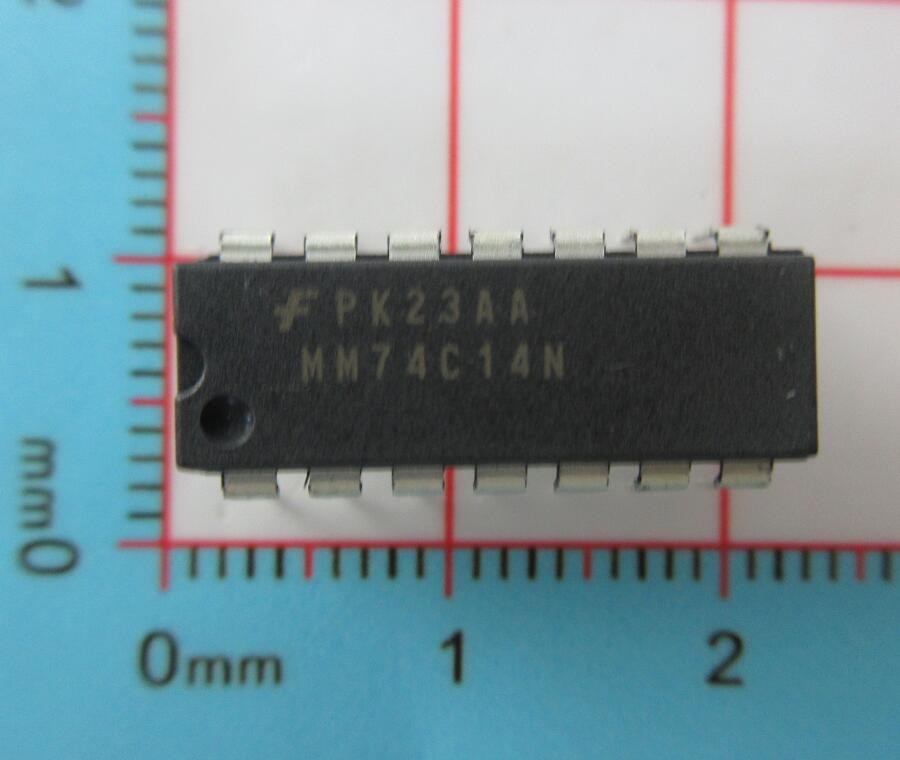

| Manufacturer | ON Semiconductor | Manufacturer's Part # | MM74C14N |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Logic - Gates and Inverters |
| Series | 74C | Part Status | Obsolete |
| Logic Type | Inverter | Number of Circuits | 6 |
| Number of Inputs | 6 | Features | Schmitt Trigger |
| Voltage - Supply | 3V ~ 15V | Current - Quiescent (Max) | - |
| Current - Output High, Low | 8mA, 8mA | Logic Level - Low | 0.7V ~ 2.1V |
| Logic Level - High | 4.3V ~ 12.9V | Max Propagation Delay @ V, Max CL | 200ns @ 10V, 50pF |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP | Package / Case | 14-DIP (0.300", 7.62mm) |
