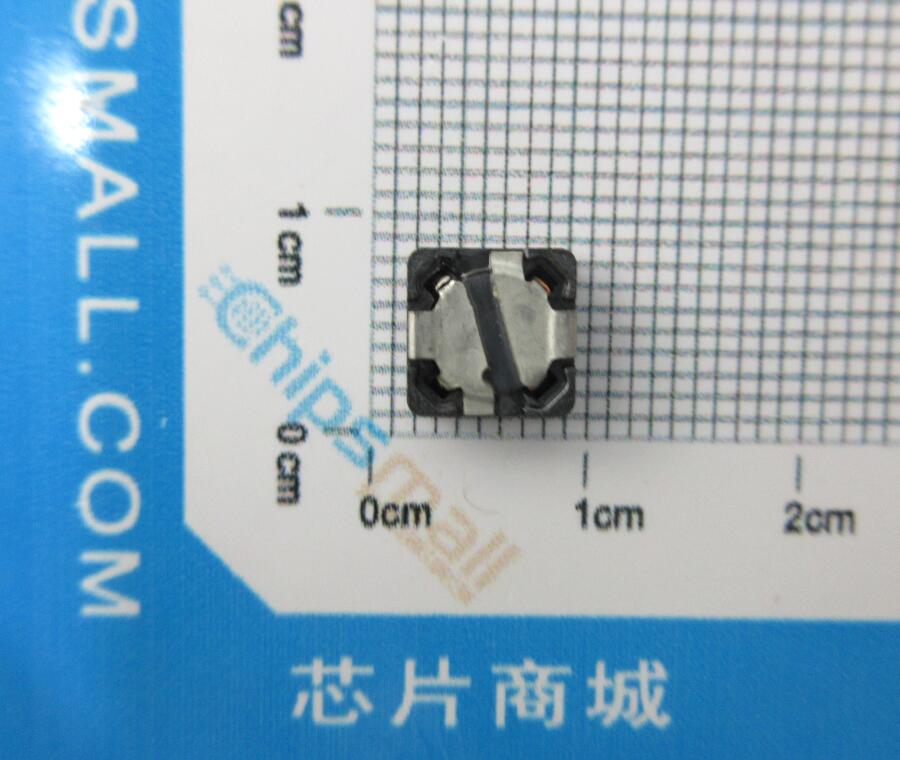

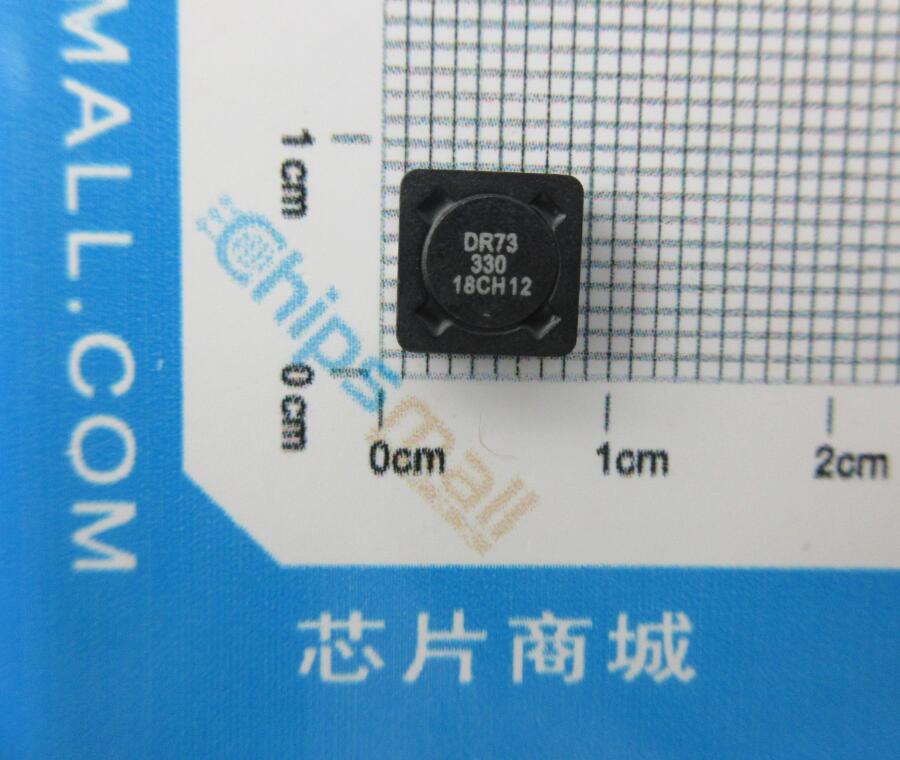

Part No.：DR73-330-R
Category：Fixed Inductors
Manufacturer：Eaton
Date Code：18+
Package Type：SMD
Quantity：30
Click：73
Update Time：2022-01-12 17:37:18
Description:
| Manufacturer | Eaton | Manufacturer's Part # | DR73-330-R |
|---|---|---|---|
| Categories | Inductors, Coils, Chokes | Sub-Categories | Fixed Inductors |
| Series | DR | Part Status | Active |
| Type | Wirewound | Material - Core | Ferrite |
| Inductance | 33µH | Tolerance | ±20% |
| Current Rating | 1.31A | Current - Saturation | 1.35A |
| Shielding | Shielded | DC Resistance (DCR) | 166 mOhm |
| Q @ Freq | - | Frequency - Self Resonant | - |
| Ratings | - | Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz | Features | - |
| Mounting Type | Surface Mount | Package / Case | Nonstandard |
| Supplier Device Package | - | Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height - Seated (Max) | 0.140" (3.55mm) |
