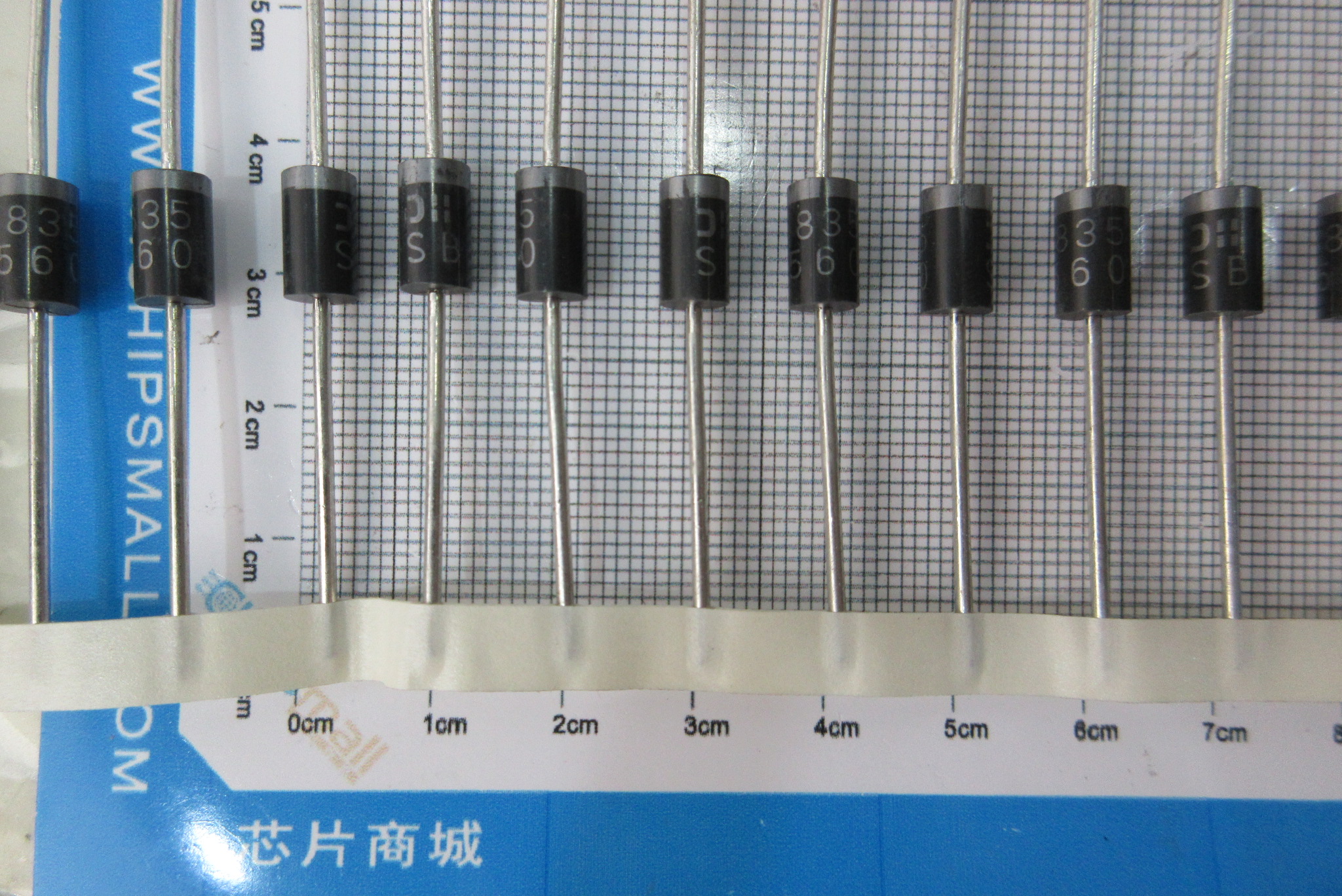

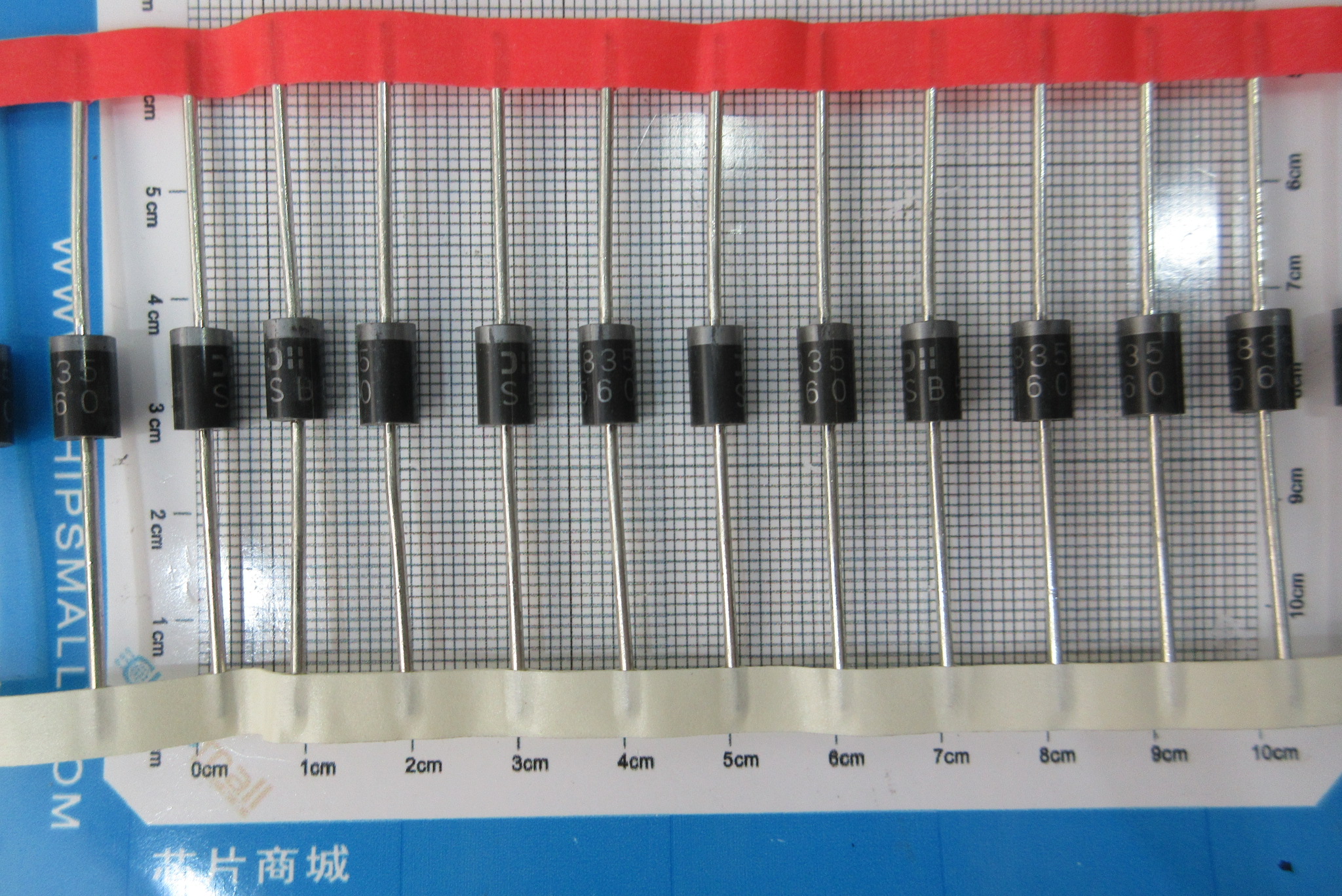

Part No.：SB560-A
Category：Diodes/Transistors
Manufacturer： Diodes Incorporated
Date Code：
Package Type：60V 5A
Quantity：100000
Click：37
Update Time：2022-04-23 16:44:13
Description:
| Manufacturer | Diodes Incorporated | Manufacturer's Part # | SB560-A-01 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Diodes - Rectifiers - Single |
| Series | - | Part Status | Obsolete |
| Diode Type | Schottky | Voltage - DC Reverse (Vr) (Max) | 60V |
| Current - Average Rectified (Io) | 5A | Voltage - Forward (Vf) (Max) @ If | 670mV @ 5A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500µA @ 60V | Capacitance @ Vr, F | - |
| Mounting Type | Through Hole | Package / Case | DO-201AD, Axial |
| Supplier Device Package | DO-201AD | Operating Temperature - Junction |
