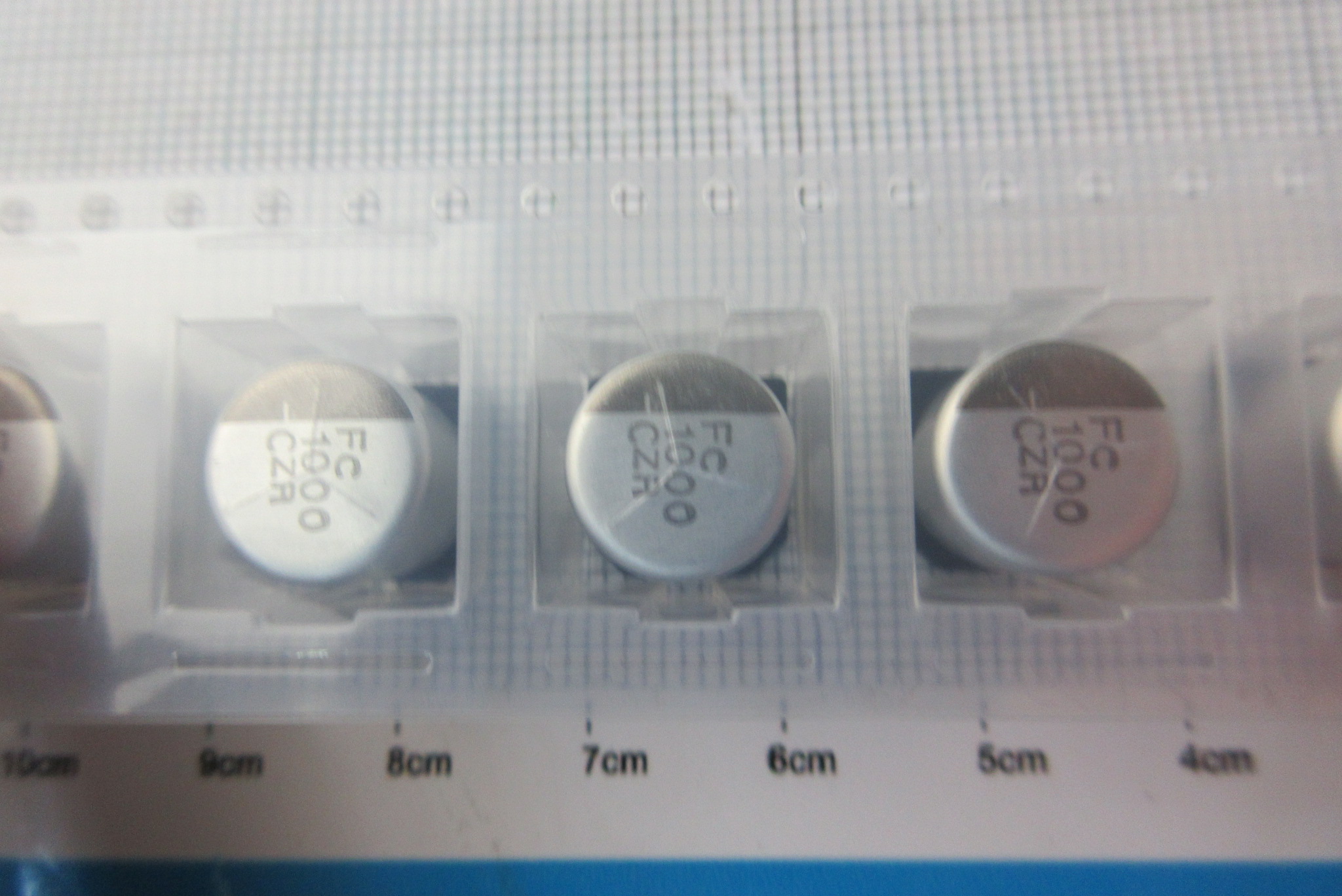

Part No.：EMZR160ARA102MJA0G
Category：Aluminium Electrolytic
Manufacturer：United Chemi-Con
Date Code：
Package Type：SMD
Quantity：50000
Click：34
Update Time：2022-06-13 11:07:17
Description:
| Manufacturer | United Chemi-Con | Manufacturer's Part # | EMZR160ARA102MJA0G |
|---|---|---|---|
| Categories | Capacitors | Sub-Categories | Aluminum Electrolytic Capacitors |
| Series | Alchip™- MZR | Part Status | Active |
| Capacitance | 1000µF | Tolerance | ±20% |
| Voltage - Rated | 16V | ESR (Equivalent Series Resistance) | 60 mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar | Ratings | AEC-Q200 |
| Applications | Automotive | Ripple Current @ Low Frequency | 714mA @ 120Hz |
| Ripple Current @ High Frequency | 1.19A @ 100kHz | Impedance | - |
| Lead Spacing | - | Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Package / Case | Radial, Can - SMD |
