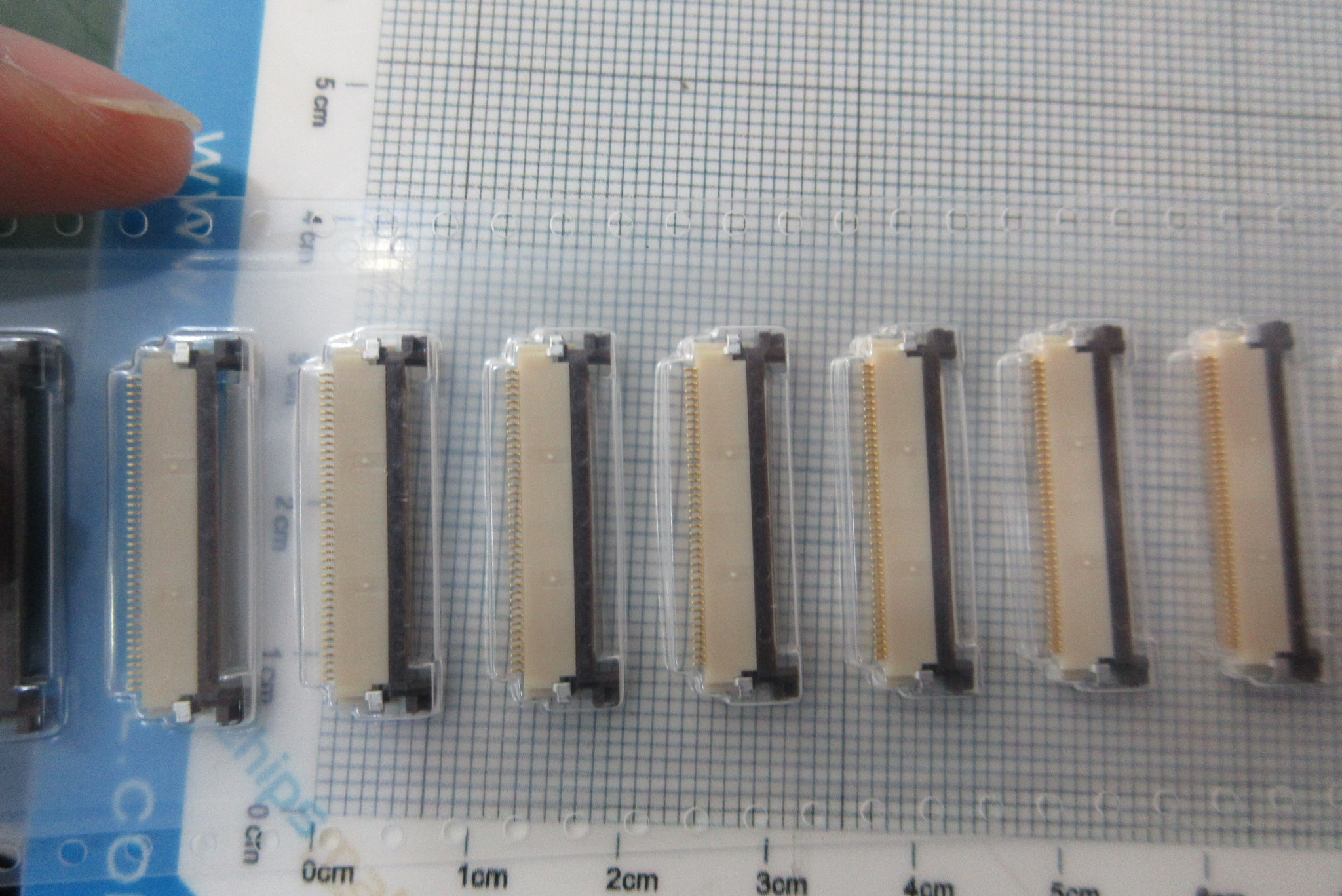

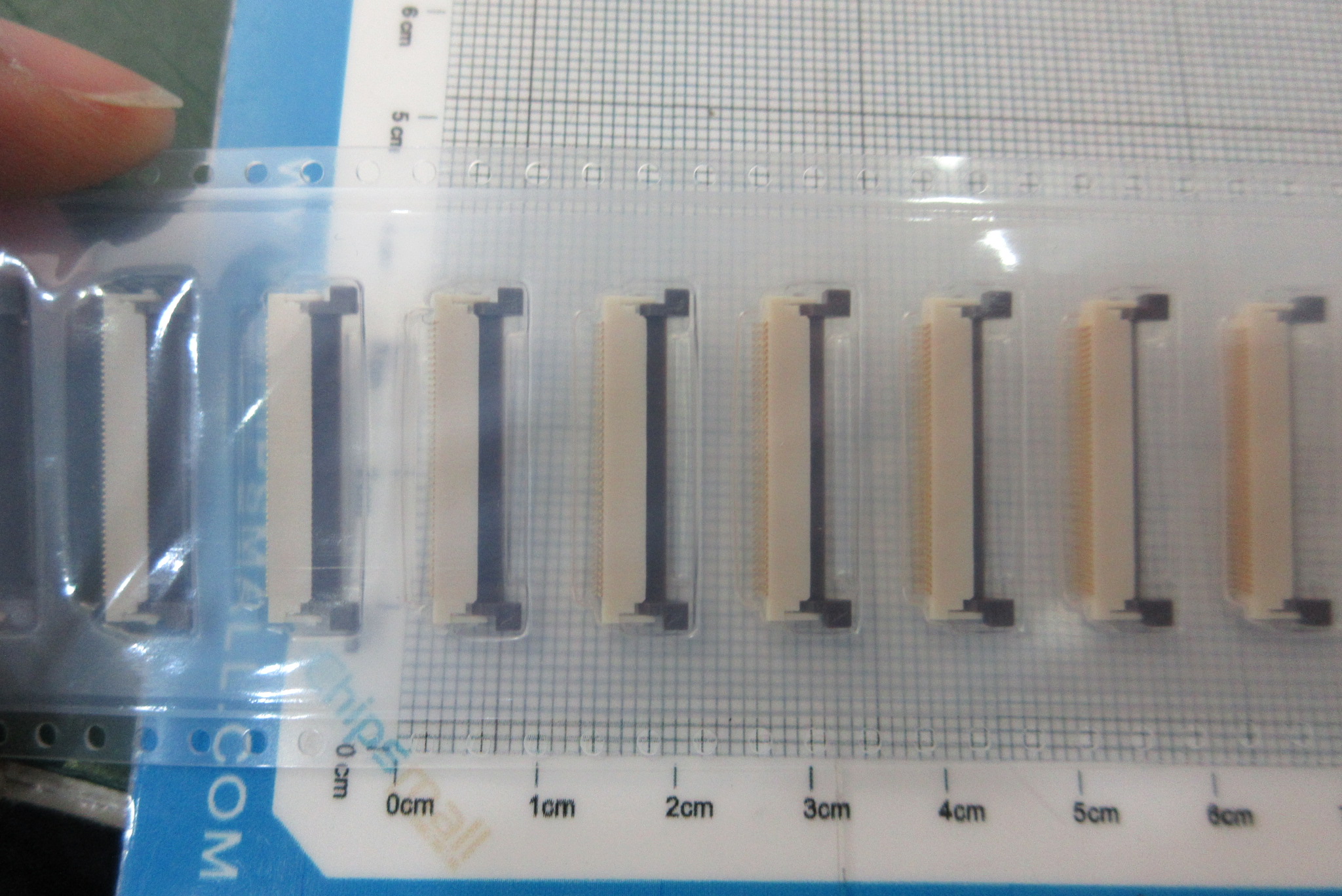

Part No.：FH12A-40S-0.5SH(55)
Category：Interconnects
Manufacturer：Hirose
Date Code：
Package Type：40POS
Quantity：50000
Click：34
Update Time：2022-06-13 13:50:03
Description:
| Manufacturer | Hirose | Manufacturer's Part # | FH12A-40S-0.5SH(55) |
|---|---|---|---|
| Categories | Connectors, Interconnects | Sub-Categories | FFC, FPC (Flat Flexible) Connectors |
| Series | FH12 | Part Status | Active |
| Flat Flex Type | FFC, FPC | Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top | Number of Positions | 40 |
| Pitch | 0.020" (0.50mm) | Termination | Solder |
| FFC, FCB Thickness | 0.30mm | Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Flip Lock | Cable End Type | Straight |
| Contact Material | Phosphor Bronze | Contact Finish | Gold |
| Housing Material | Polyamide (PA), Nylon | Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Zero Insertion Force (ZIF) | Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C | Material Flammability Rating | UL94 V-0 |
