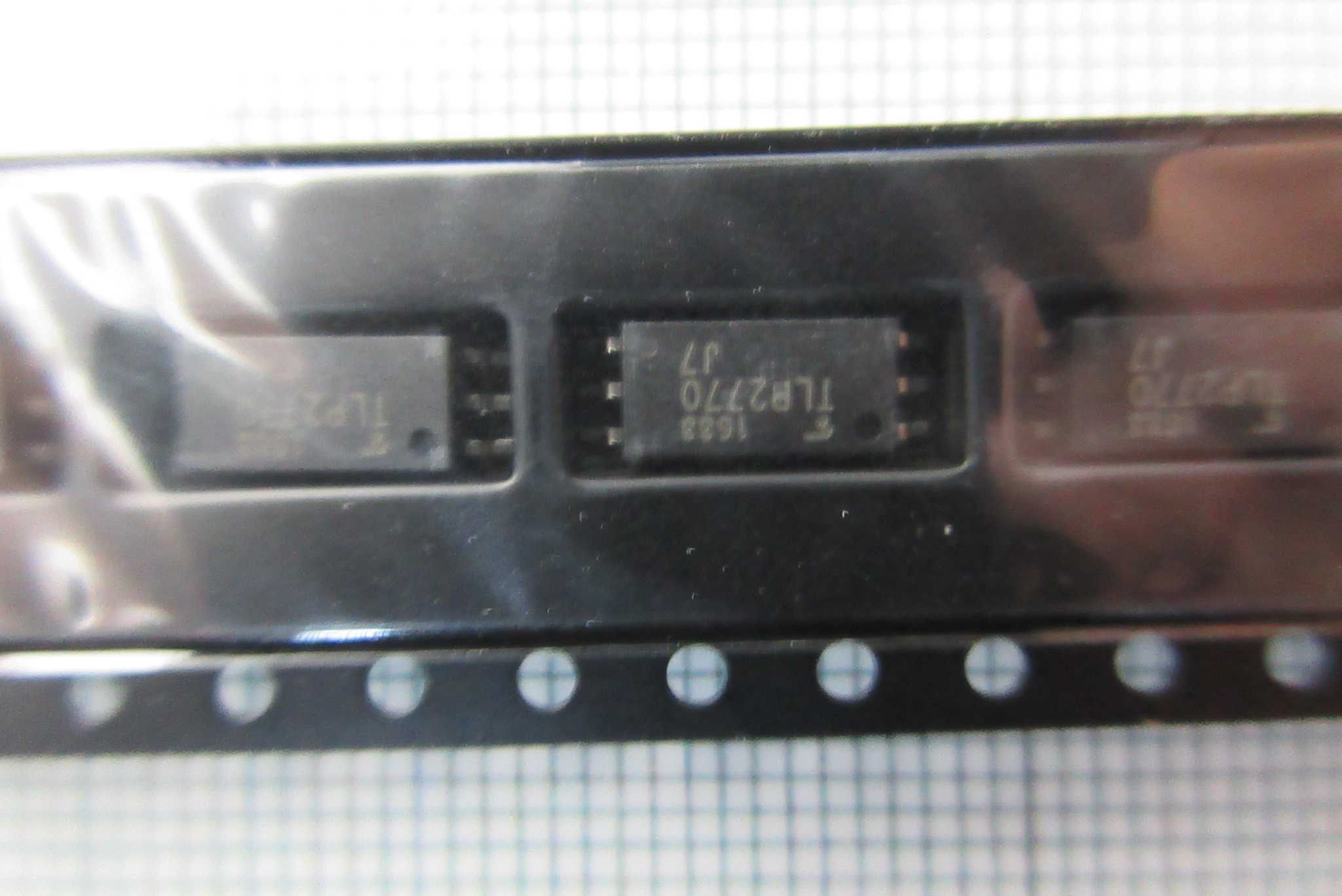

Part No.：TLP2770(TP,E
Category：Isolator
Manufacturer：Toshiba Semiconductor and Storage
Date Code：
Package Type：6-SOIC
Quantity：50000
Click：3
Update Time：2022-06-20 11:33:08
Description:
| Manufacturer | Toshiba Semiconductor and Storage | Manufacturer's Part # | TLP2770(TP,E |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Optoisolators - Logic Output |
| Series | - | Part Status | Active |
| Number of Channels | 1 | Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms | Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC | Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 10mA | Data Rate | 20MBd |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns | Rise / Fall Time (Typ) | 1.3ns, 1ns |
| Voltage - Forward (Vf) (Typ) | 1.5V | Current - DC Forward (If) (Max) | 8mA |
| Voltage - Supply | 2.7V ~ 5.5V | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 6-SO |
