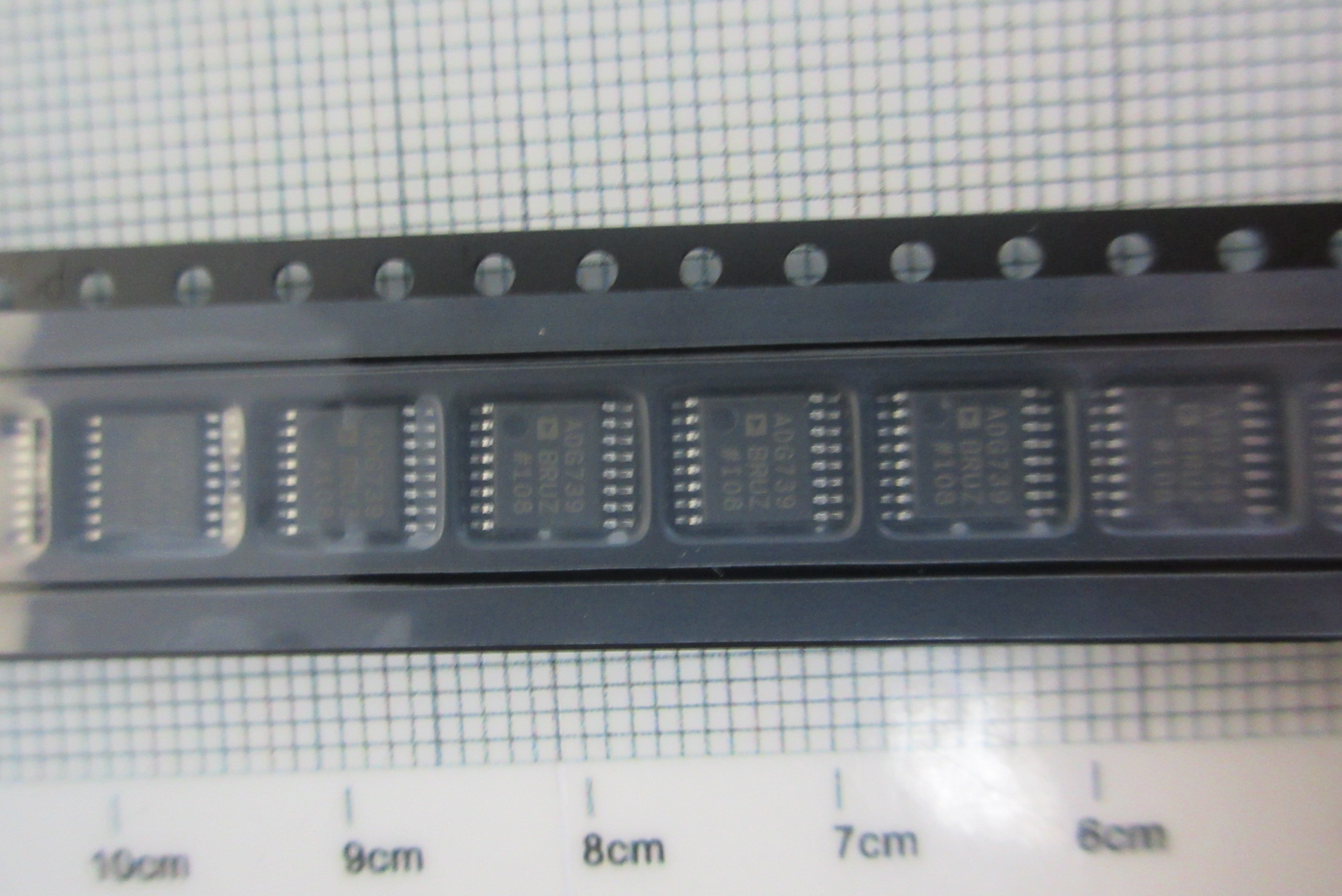

Part No.：ADG739BRUZ-REEL7
Category：Interface
Manufacturer：Analog Devices, Inc
Date Code：
Package Type：16TSSOP
Quantity：50000
Click：2
Update Time：2022-07-18 11:01:20
Description:
| Manufacturer | Analog Devices, Inc. | Manufacturer's Part # | ADG739BRUZ-REEL7 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Series | - | Part Status | Active |
| Switch Circuit | SP4T | Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 | On-State Resistance (Max) | 4.5 Ohm |
| Channel-to-Channel Matching (ΔRon) | - | Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 20ns, 10ns (Typ) |
| -3db Bandwidth | 100MHz | Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 42pF | Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -75dB @ 1MHz | Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) | Supplier Device Package | 16-TSSOP |
