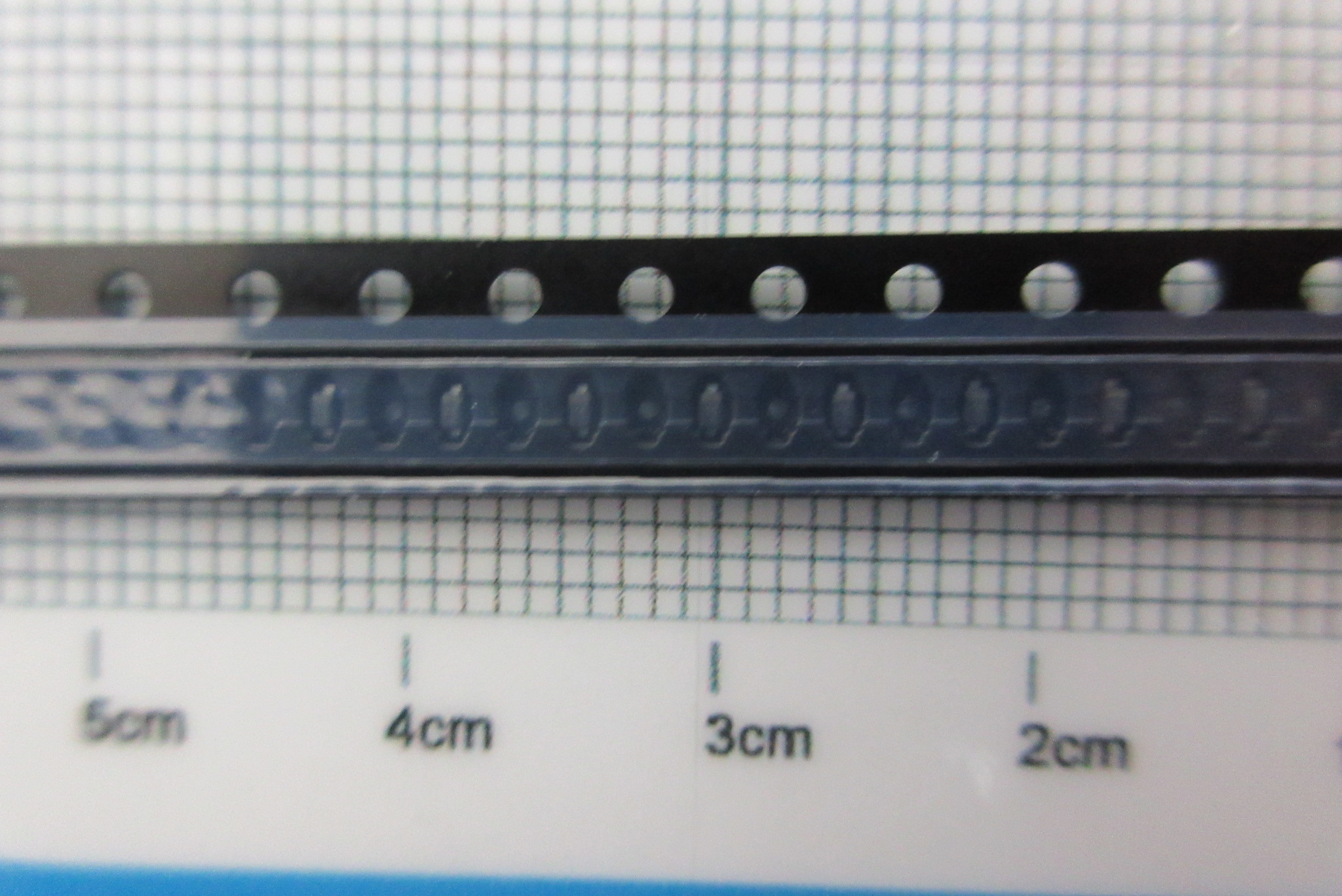

Part No.：SZESD5Z12T1G
Category：TVS - Diodes
Manufacturer：ON Semiconductor
Date Code：
Package Type：SOD523
Quantity：50000
Click：25
Update Time：2022-07-20 18:05:53
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | SZESD5Z12T1G |
|---|---|---|---|
| Categories | Circuit Protection | Sub-Categories | TVS - Diodes |
| Series | Automotive, AEC-Q101 | Part Status | Active |
| Type | Zener | Unidirectional Channels | 1 |
| Bidirectional Channels | - | Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | 14.1V | Voltage - Clamping (Max) @ Ipp | 25V |
| Current - Peak Pulse (10/1000µs) | 9.6A (8/20µs) | Power - Peak Pulse | 240W |
| Power Line Protection | No | Applications | Automotive |
| Capacitance @ Frequency | 55pF @ 1MHz | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
