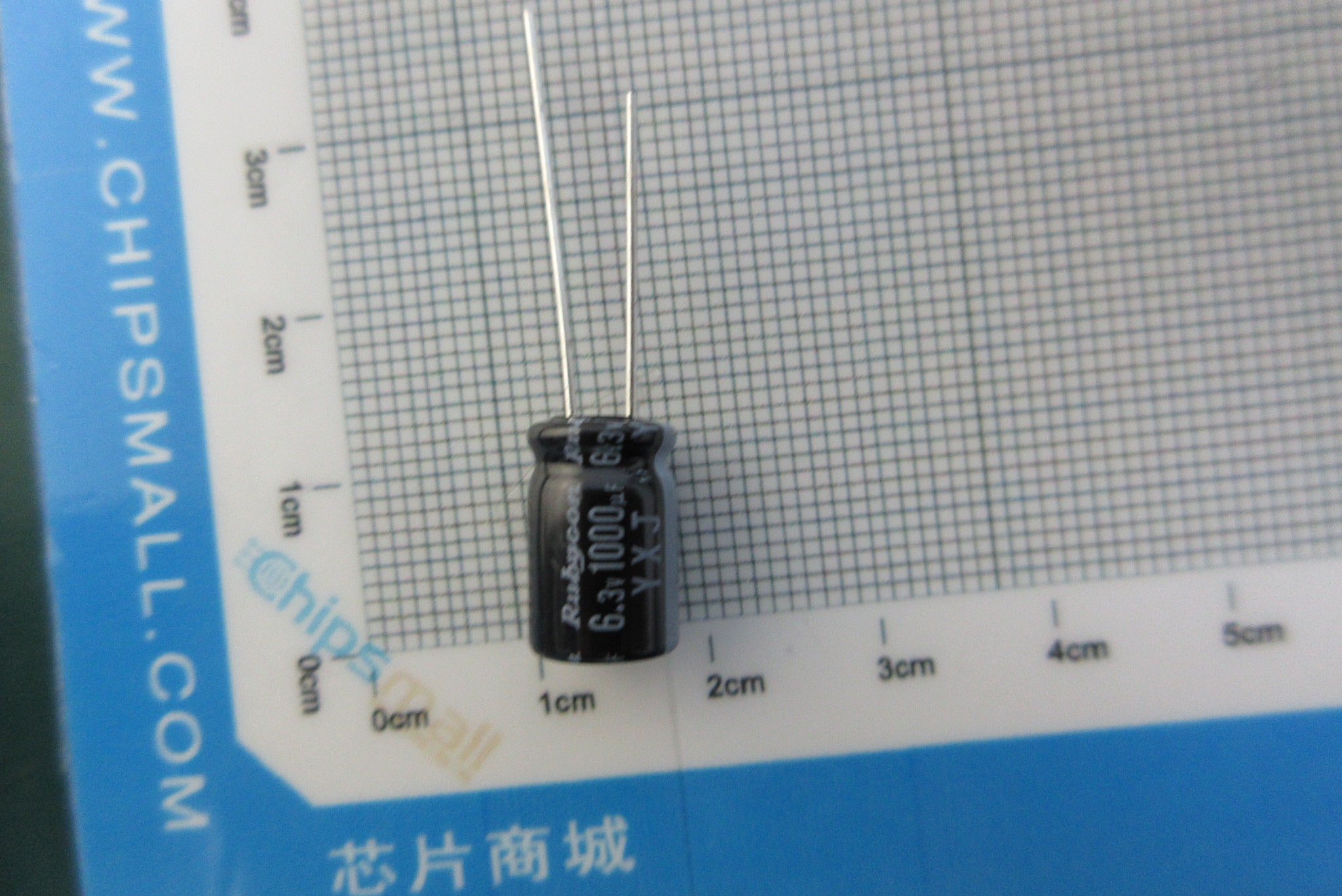

Part No.：6.3YXJ1000M8X11.5
Category：Aluminium Electrolytic
Manufacturer：Rubycon
Date Code：
Package Type：-
Quantity：50000
Click：21
Update Time：2022-07-21 13:49:04
Description:
| Manufacturer | Rubycon | Manufacturer's Part # | 6.3YXJ1000M8X11.5 |
|---|---|---|---|
| Categories | Capacitors | Sub-Categories | Aluminum Electrolytic Capacitors |
| Series | YXJ | Part Status | Active |
| Capacitance | 1000µF | Tolerance | ±20% |
| Voltage - Rated | 6.3V | ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C | Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar | Ratings | - |
| Applications | General Purpose | Ripple Current @ Low Frequency | 480mA @ 120Hz |
| Ripple Current @ High Frequency | 640mA @ 100kHz | Impedance | 130 mOhms |
| Lead Spacing | 0.138" (3.50mm) | Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | Surface Mount Land Size | - |
| Mounting Type | Through Hole | Package / Case | Radial, Can |
