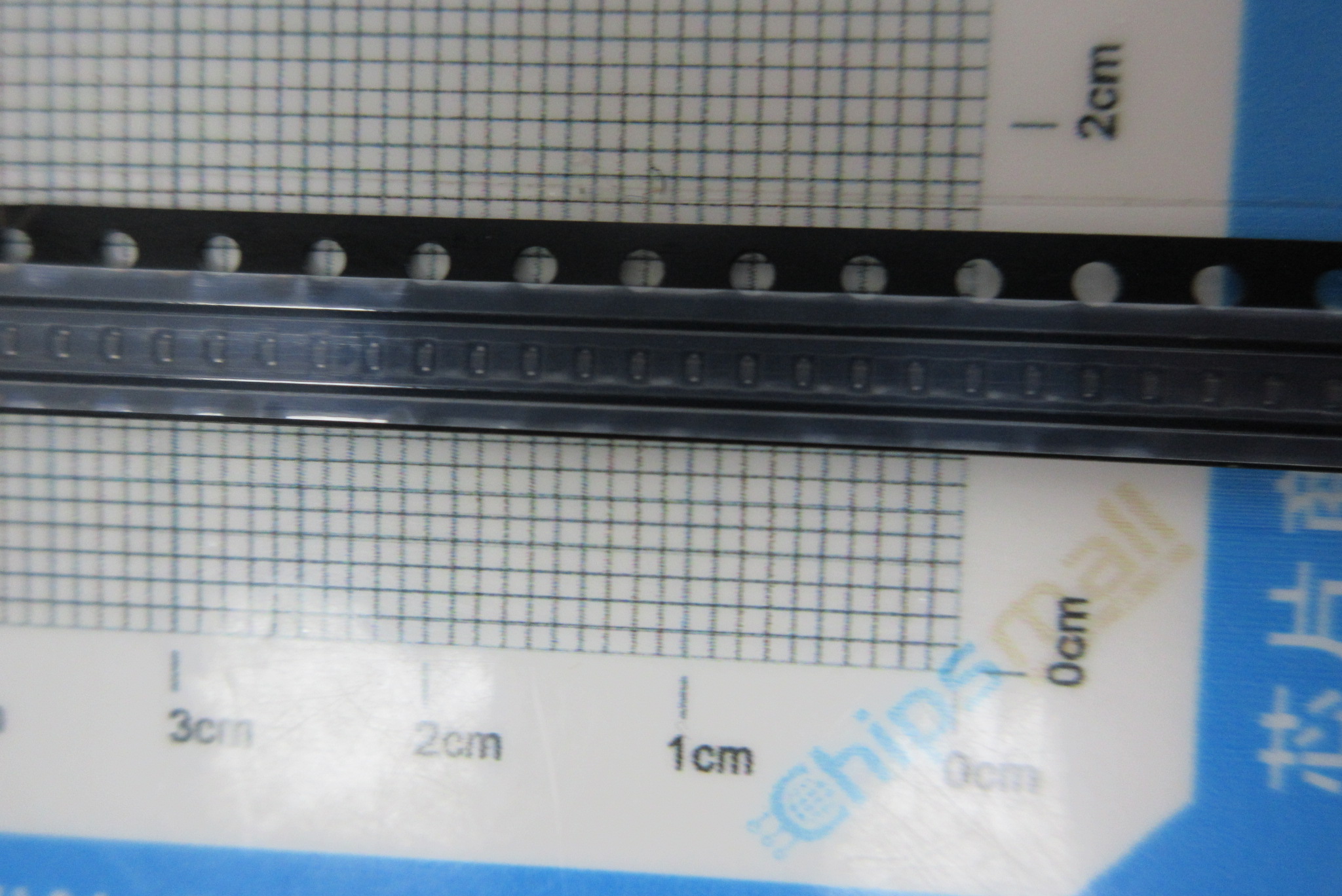

Part No.：ESD9L5.0ST5G
Category：TVS - Diodes
Manufacturer：ON Semiconductor
Date Code：
Package Type：SOD923
Quantity：50000
Click：14
Update Time：2022-07-26 10:43:06
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | ESD9L5.0ST5G |
|---|---|---|---|
| Categories | Circuit Protection | Sub-Categories | TVS - Diodes |
| Series | - | Part Status | Active |
| Type | Zener | Unidirectional Channels | 1 |
| Bidirectional Channels | - | Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.4V | Voltage - Clamping (Max) @ Ipp | 9.8V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | Power - Peak Pulse | - |
| Power Line Protection | No | Applications | General Purpose |
| Capacitance @ Frequency | 0.5pF @ 1MHz | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | SOD-923 |
| Supplier Device Package | SOD-923 |
