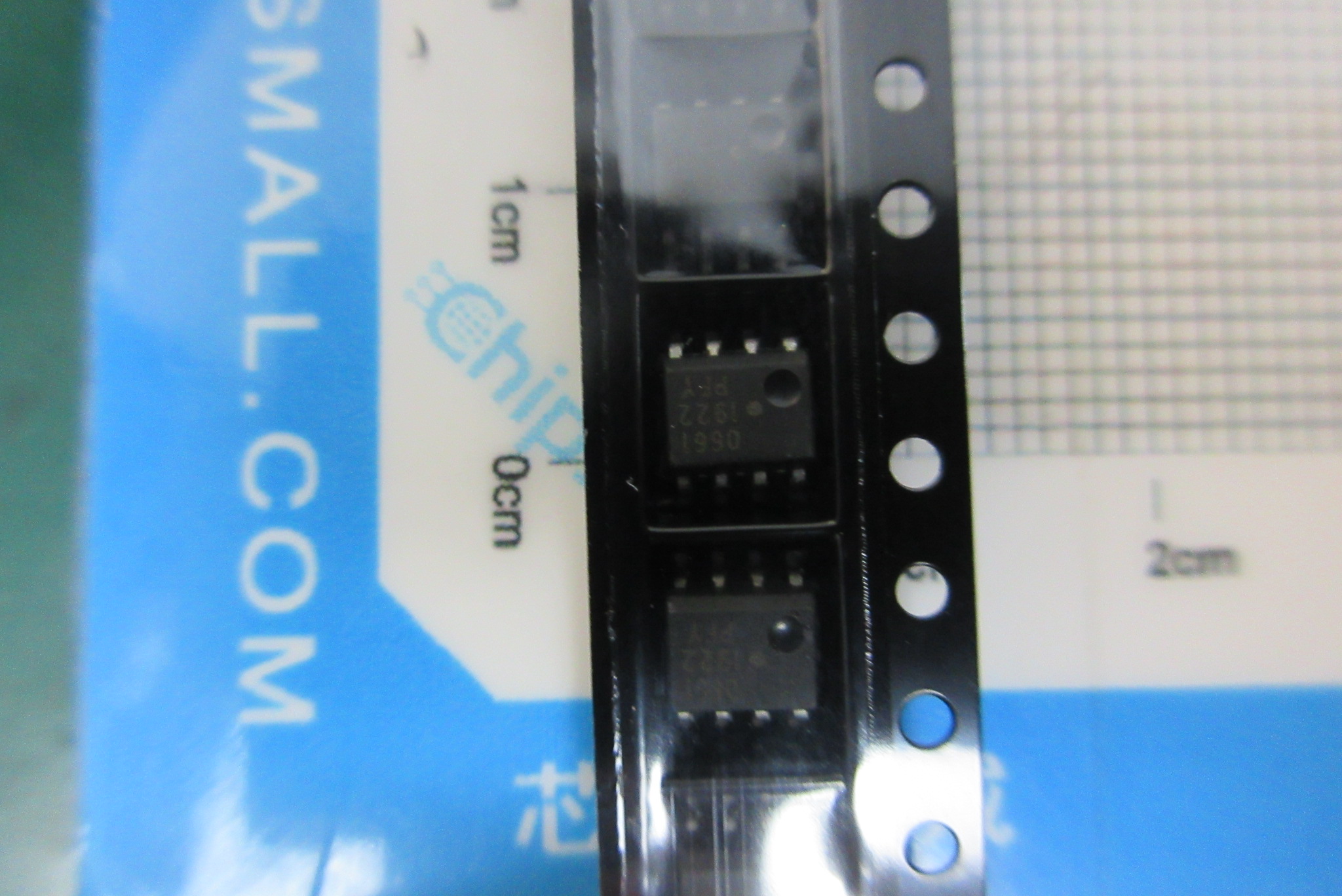

Part No.：HCPL-0661-500E
Category：Isolator
Manufacturer：Broadcom Limited
Date Code：
Package Type：8-SOIC
Quantity：50000
Click：27
Update Time：2022-07-26 10:48:09
Description:
| Manufacturer | Broadcom Limited | Manufacturer's Part # | HCPL-0661-500E |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Optoisolators - Logic Output |
| Series | - | Part Status | Active |
| Number of Channels | 2 | Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 3750Vrms | Common Mode Transient Immunity (Min) | 15kV/µs |
| Input Type | DC | Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 50mA | Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns | Rise / Fall Time (Typ) | 24ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.5V | Current - DC Forward (If) (Max) | 15mA |
| Voltage - Supply | 4.5V ~ 5.5V | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO Tall |
