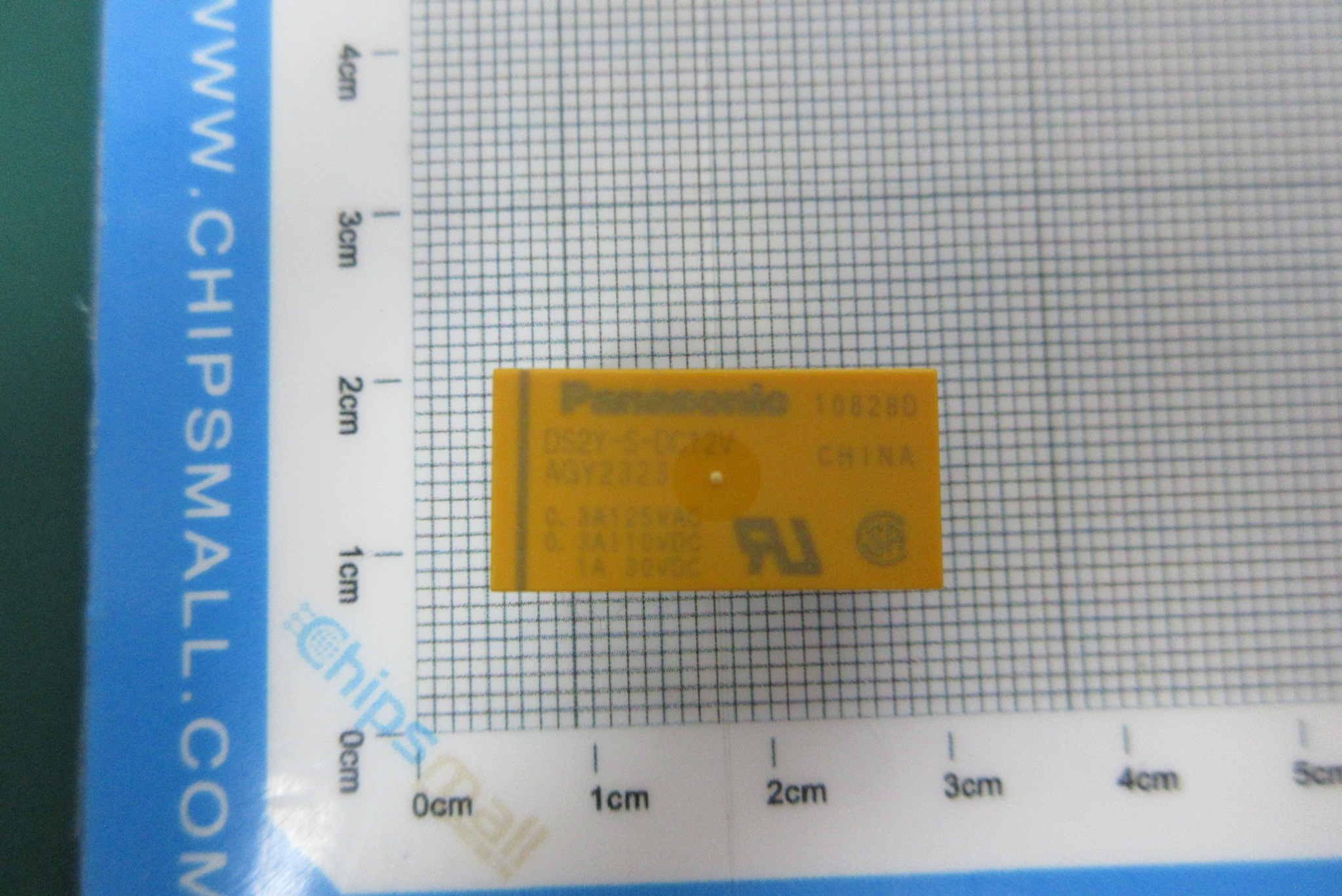

Part No.：DS2Y-S-DC12V
Category：Relays
Manufacturer：Panasonic
Date Code：
Package Type：-
Quantity：50000
Click：5
Update Time：2022-07-28 14:27:45
Description:
| Manufacturer | Panasonic | Manufacturer's Part # | DS2Y-S-DC12V |
|---|---|---|---|
| Categories | Relays | Sub-Categories | Signal Relays, Up to 2 Amps |
| Series | DS2Y | Part Status | Active |
| Relay Type | General Purpose | Coil Type | Non Latching |
| Coil Current | 16.7mA | Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) | Contact Rating (Current) | 2A |
| Switching Voltage | 250VAC, 220VDC - Max | Turn On Voltage (Max) | 8.4 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Operate Time | 4ms |
| Release Time | 3ms | Features | - |
| Mounting Type | Through Hole | Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 70°C |
