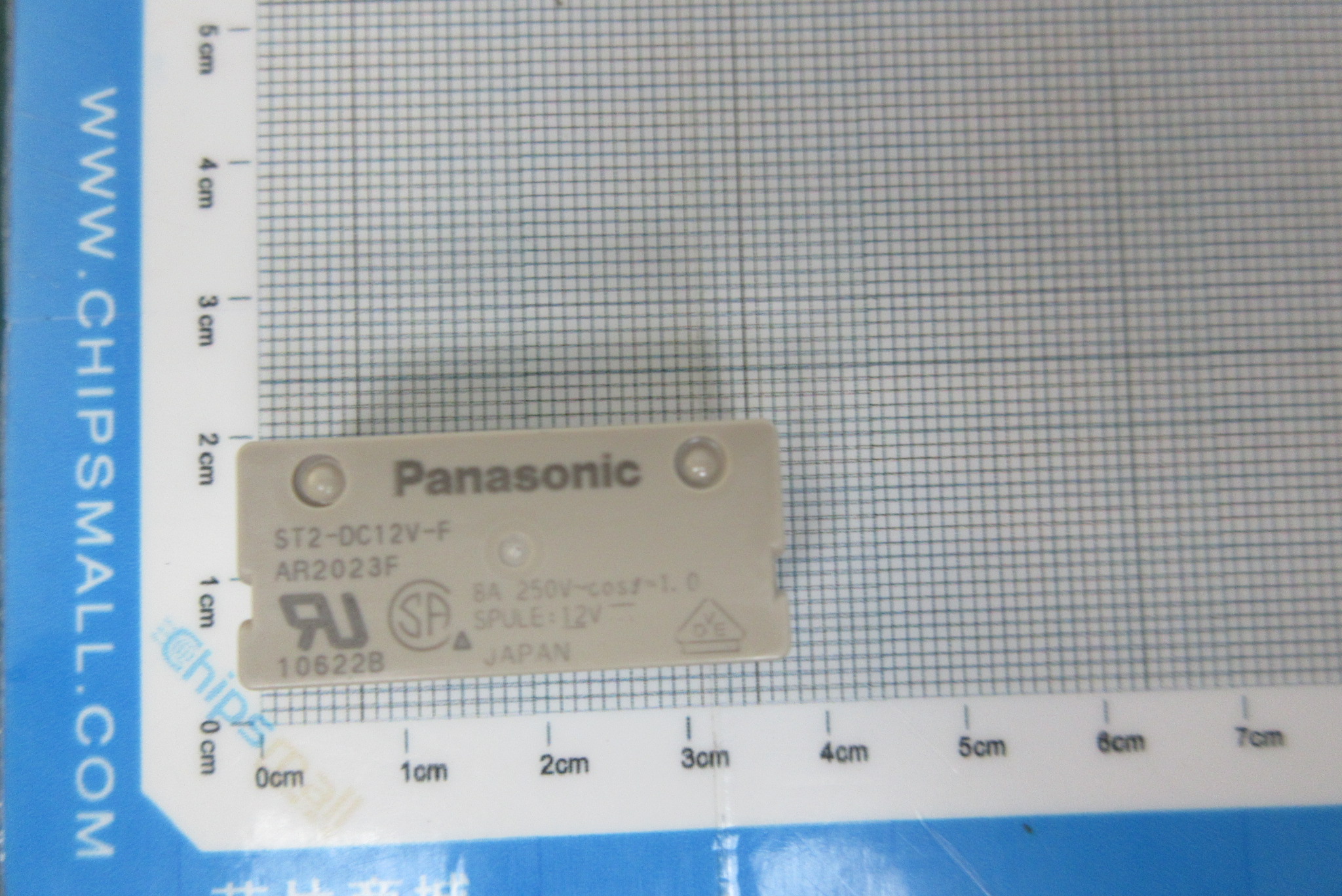

Part No.：ST2-DC12V-F
Category：Relays
Manufacturer：Panasonic
Date Code：
Package Type：-
Quantity：50000
Click：23
Update Time：2022-08-01 14:32:25
Description:
| Manufacturer | Panasonic | Manufacturer's Part # | ST2-DC12V-F |
|---|---|---|---|
| Categories | Relays | Sub-Categories | Power Relays, Over 2 Amps |
| Series | ST | Part Status | Active |
| Mounting Type | Through Hole | Coil Voltage | 12VDC |
| Contact Form | DPST-NO (2 Form A) | Contact Rating (Current) | 8A |
| Switching Voltage | 380VAC, 250VDC - Max | Coil Current | 20.0mA |
| Coil Type | Non Latching | Features | Sealed - Fully |
| Termination Style | PC Pin | Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC | Operate Time | 15ms |
| Release Time | 10ms | Operating Temperature | -40°C ~ 60°C |
| Contact Material | Silver Tin Oxide (AgSnO) | Relay Type | General Purpose |
