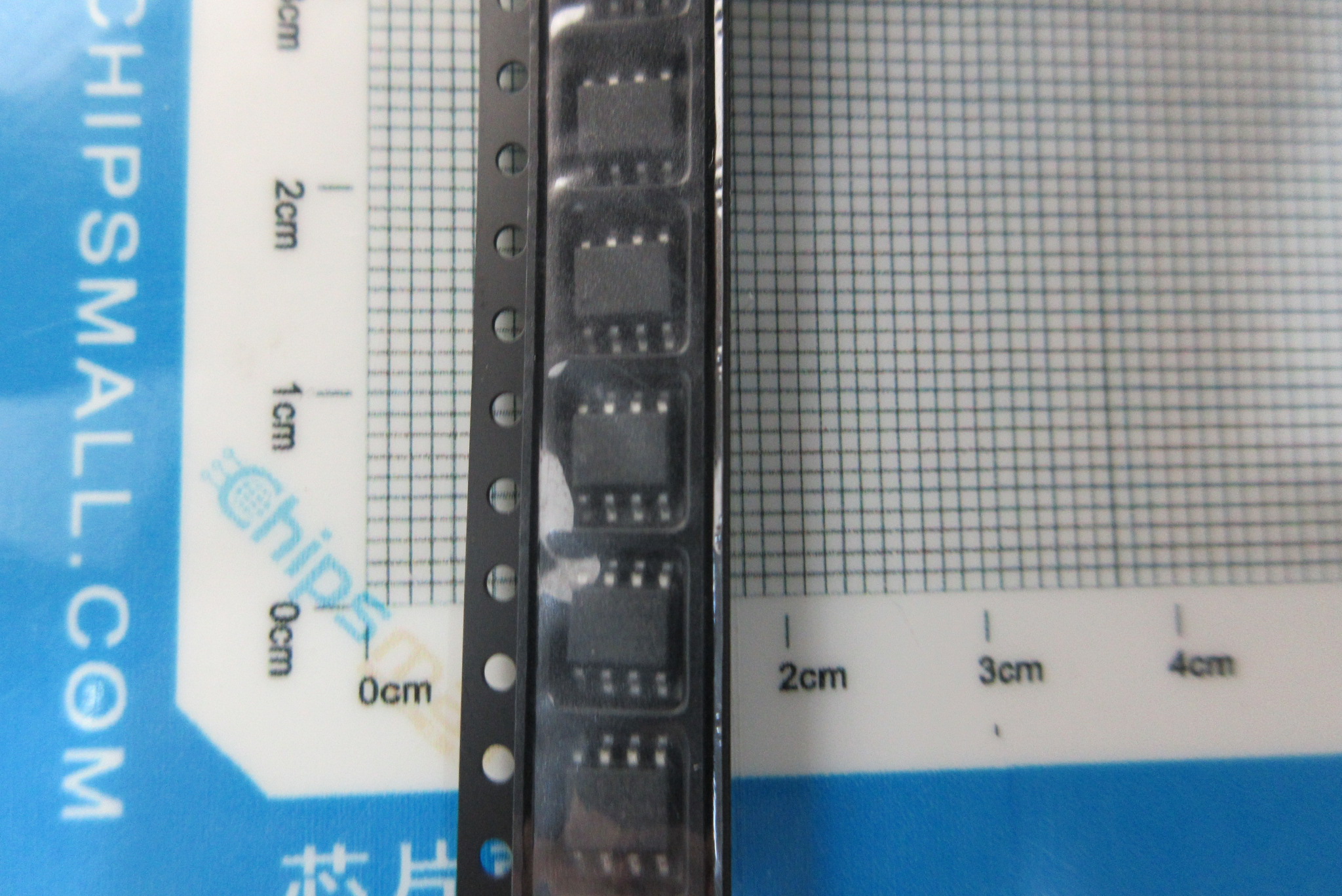

Part No.：ACS712ELCTR-20A-T
Category：Sensors & Transducers
Manufacturer：Allegro MicroSystems, LLC.
Date Code：
Package Type：8-SOIC
Quantity：50000
Click：38
Update Time：2022-06-16 15:23:29
Description:
| Manufacturer | Allegro MicroSystems, LLC. | Manufacturer's Part # | ACS712ELCTR-20A-T |
|---|---|---|---|
| Categories | Sensors, Transducers | Sub-Categories | Current Transducers |
| Series | - | Part Status | Not For New Designs |
| For Measuring | AC/DC | Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 20A | Number of Channels | 1 |
| Output | Ratiometric, Voltage | Sensitivity | 100mV/A |
| Frequency | DC ~ 80kHz | Linearity | ±1.5% |
| Accuracy | ±1.5% | Voltage - Supply | 5V |
| Response Time | 5µs | Current - Supply (Max) | 13mA |
| Operating Temperature | -40°C ~ 85°C | Polarization | Bidirectional |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
